Mogami W2901 (And other adventures in re-purposing)

Share

Since I transitioned from media/film/audio production to a job in manufacturing/engineering, I’ve noticed or been the cause of some neat re-purposing from the film industry to the manufacturing industry. The robustness demanded by the film industry has made certain specialized products very useful in manufacturing tooling.

Mogami W2901

I had a need for a high-strength, lightweight, cheap, and small high-flex-cycle cable. Sourcing something that meets a bunch of contradicting demands (strong and lightweight? flexible and durable? cheap at the same time?) makes for an interesting day at work. Luckily, I knew that an appropriate type of wire existed. I ended up with Mogami W2901:

177,000 flex cycles rated, Polypropylene filler thread for strength, 176 N breaking strength (about 40 pounds)…It was everything I wanted, at about $0.50/foot. It’s typically found in professional audio as a lavalier or microphone cable. If it’s good enough for daily use in a TV studio or on a rainy film set, it’s good enough for daily use in a manufacturing environment.

The Mafer Clamp

The day before my adventures in re-purposing lav cables, a sales rep comes in to demonstrate a product of theirs. What does he use to clamp it to the table, but a Mafer clamp. I chuckle:

The Matthews Studio Equipment Mafer Clamp

Next, the Manfrotto Magic Arm comes out. I laugh. Too bad the demonstrated product didn’t fit our needs.

Gaffer’s Tape

Not duct tape, not Duck tape, but a Gaffer’s tape. From temporary fixturing to guarding fingers while deburring, I use the stuff almost daily…Just as I would on set.

It’s neat to be able to use mainstays from one industry in another…At some point in the future, I will be able to talk a little about how film industry know-how benefits work with industrial vision systems.

30 feet, 50 feet…100 feet? Does it stop?

Share

So, the first prototype pictures of the Supertechno 100 are in the wild…Dollygrippery has them.

A 100 foot telescoping camera crane…This in and of itself is an amazing feat, given the relatively recent development of even 20 foot telescoping cranes.

The whip, vibration and movement on a non cable-stayed arm of that length with 3 (or more?) sections will be tricky to handle though. I bet the engineering is absolutely top-notch though. It’s an inspirational sight! The technology has come so far in a relatively short time…Louma, Techno, the Hydrascope…There are a ton of good options out there. Anyway…

I will be curious to see the thing in use, or at least at a trade show. The Strada trick of just lifting the operator, steadicam rig and all probably is impossible, though would be a wild ride for the operator. My money is on a stabilized head like the Scorpio or Chapman G-3 over the Techno Z head or other standard heads for most uses, given the inherent flexing.

And how many operators to effect a movement? Or are they going to motorize the base in addition to the crane and head? That’s a lot of weight to get around. Sounds like a 3-4 person job now…

Anyway, Dollygrippery has the goods. It’s worth a look, because really neat things come from Plzeň…

Buy quality, buy once…Or adventures in overkill.

Share

I recently made the mistake of buying a replacement suction cup for my GPS unit. The first one broke when the suction cup rubber detached from the rest of the device. The second one promptly broke as well. In the same spot.

I don’t like wasting money or time. This wasted money, and time:

I broke two of these.

The thing about the film industry is that work invariably invades one’s personal life. Film equipment is useful to have around the house, not just on set. I’m not the only one.

Instead of wasting more money and time, I took the $7 I would have spent on a(nother) replacement, and went to my favorite hardware store: McMaster-Carr. A $3 phenolic ball, $5 thread adapter, and a Wood’s Powr-Grip from a car mount, I had this:

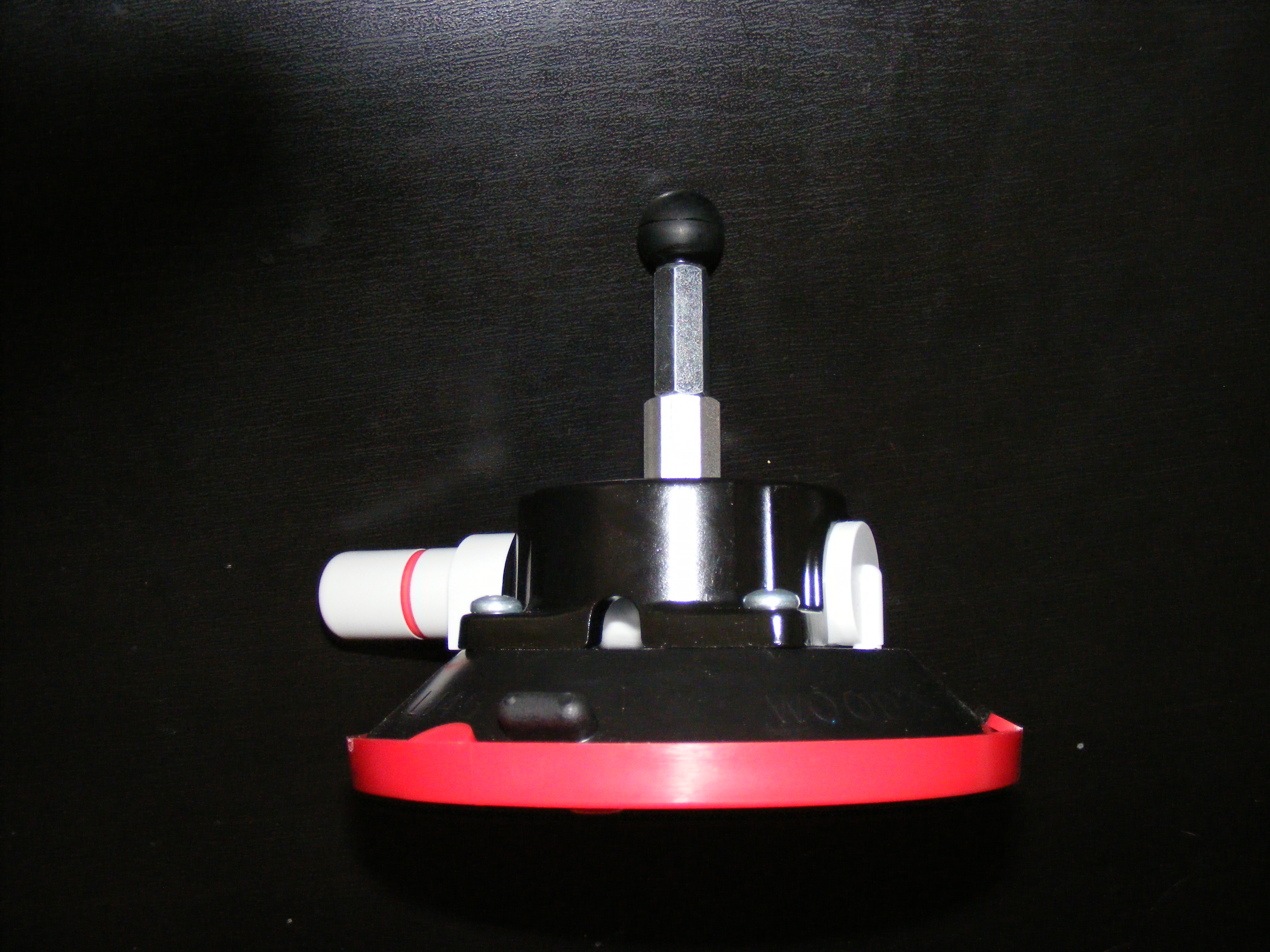

A 4.5 inch diameter suction cup, thread adapter, threaded riser and phenolic ball.

The mount in a car. My neighbor has something odd on their car antenna.

I have to add some loctite to the threads to keep them in place, but the suction cup will stay on a window for…ever.

Overkill? Yes.

The joy of never having to buy another badly made piece of crap? Priceless.

Manly Man, I yam, I yam…

Share

Nothing says Manly Man quite like pulling a pink stinger (yeah, pink), with a white dish towel hanging out of one’s back pocket.

Vroom: The story of a Lexus hood and an EX-1

Share

There comes a time in any film student’s days when one does something stupid.

That being said, I’m finishing a graduate film degree, so I have to do stupid things smartly!

The stupid:
Putting a car-mount on a car during short film managed by students.
Letting the actors drive the car (though they were competent, and safety-aware).
Mixing the car scenes from the back seat.
Letting the production use my car.

The smart:
Making sure I was working with smart, safety-aware people.
Staying on empty residential streets.
Over-engineering the hell out of the thing.
My car had over 200,000 miles on it at that point.

So, the problem was: How to mount and EX-1 to the hood of a car.

The answer:
A Woods Powr-Grip 9 inch suction cup (Ebay, I admit), Some stout planks cut and attached to the cup, a set of babylegs, and enough webbing to lift the car off the ground:

Prep/Positioning (I’m holding the camera) Before rolling

I like to think that I did stupid in a smart way. It was over-engineered and strapped to the frame of the car. The mount could hold a Genesis on the freeway, risking only high-vibration due to a single-point rig, and the risk of an imploded hood due to weight. But it wouldn’t fall off.

UPDATE (July 2009): It worked! (link to video)
